Expansion Joint Systems

Expansion Joint Systems in Saudi Arabia — Certified Supply & Installation

Introduction

Every building moves. Concrete expands and contracts with Saudi Arabia's extreme thermal cycles, structures settle, wind loads sway towers, and seismic events shift entire slabs. Expansion joint systems are the engineered gaps — and the covers that protect them — that allow this movement to happen safely without cracking floors, tearing facades or compromising fire compartments.

At Atlantis Contracting, we supply and install complete expansion joint systems for floors, walls, ceilings, roofs and facades across the Kingdom — from airports and metro stations to malls, hospitals and high-rise towers. As a specialist contractor rather than a materials trader, we deliver the full scope: movement calculations, shop drawings, certified products, trained installation crews, and the handover documentation your consultant and the Saudi Civil Defense expect.

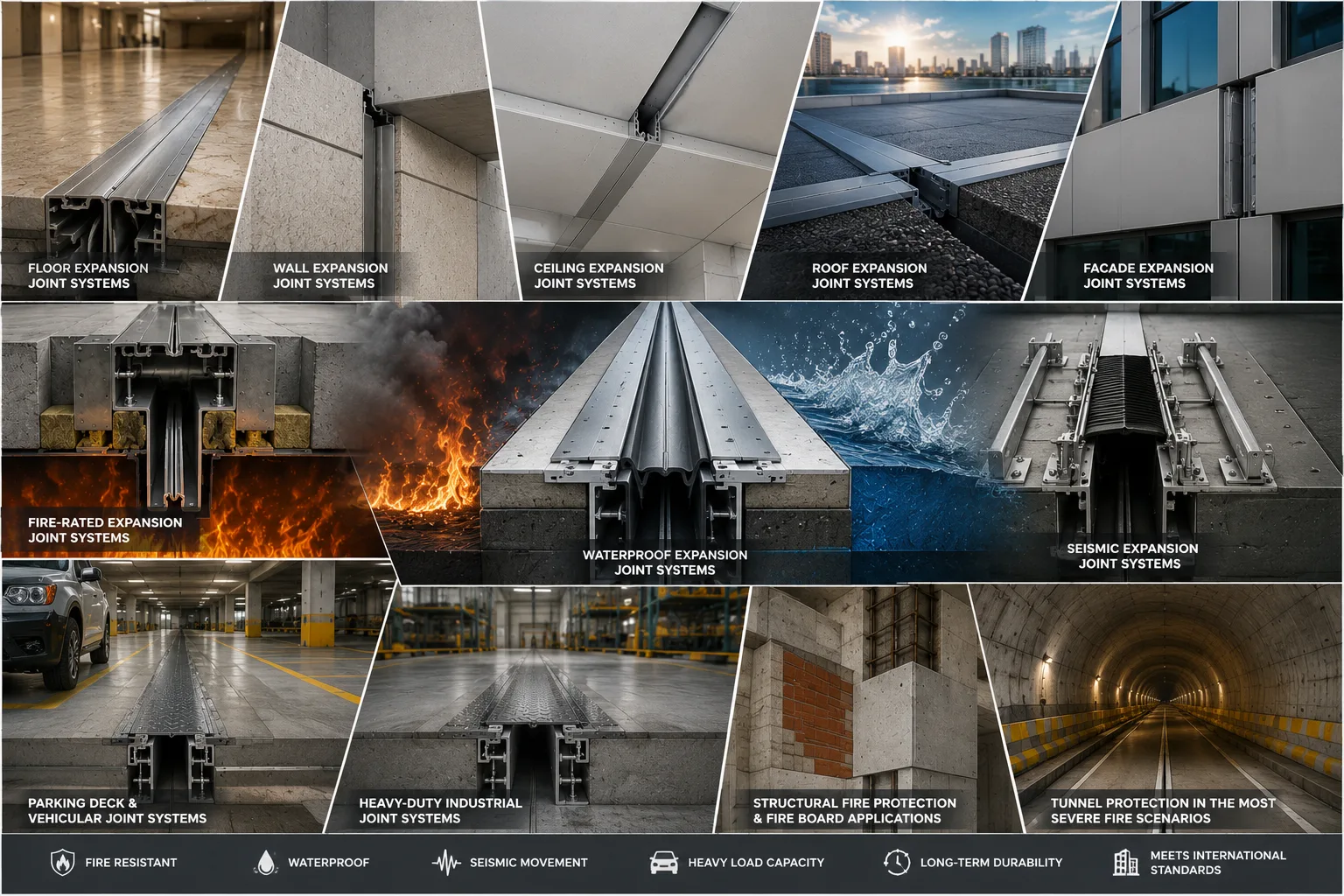

Types of Expansion Joint Systems

Selecting the right type depends on joint width, anticipated movement (thermal, seismic or both), traffic load, finish requirements and fire rating. The main families we supply and install:

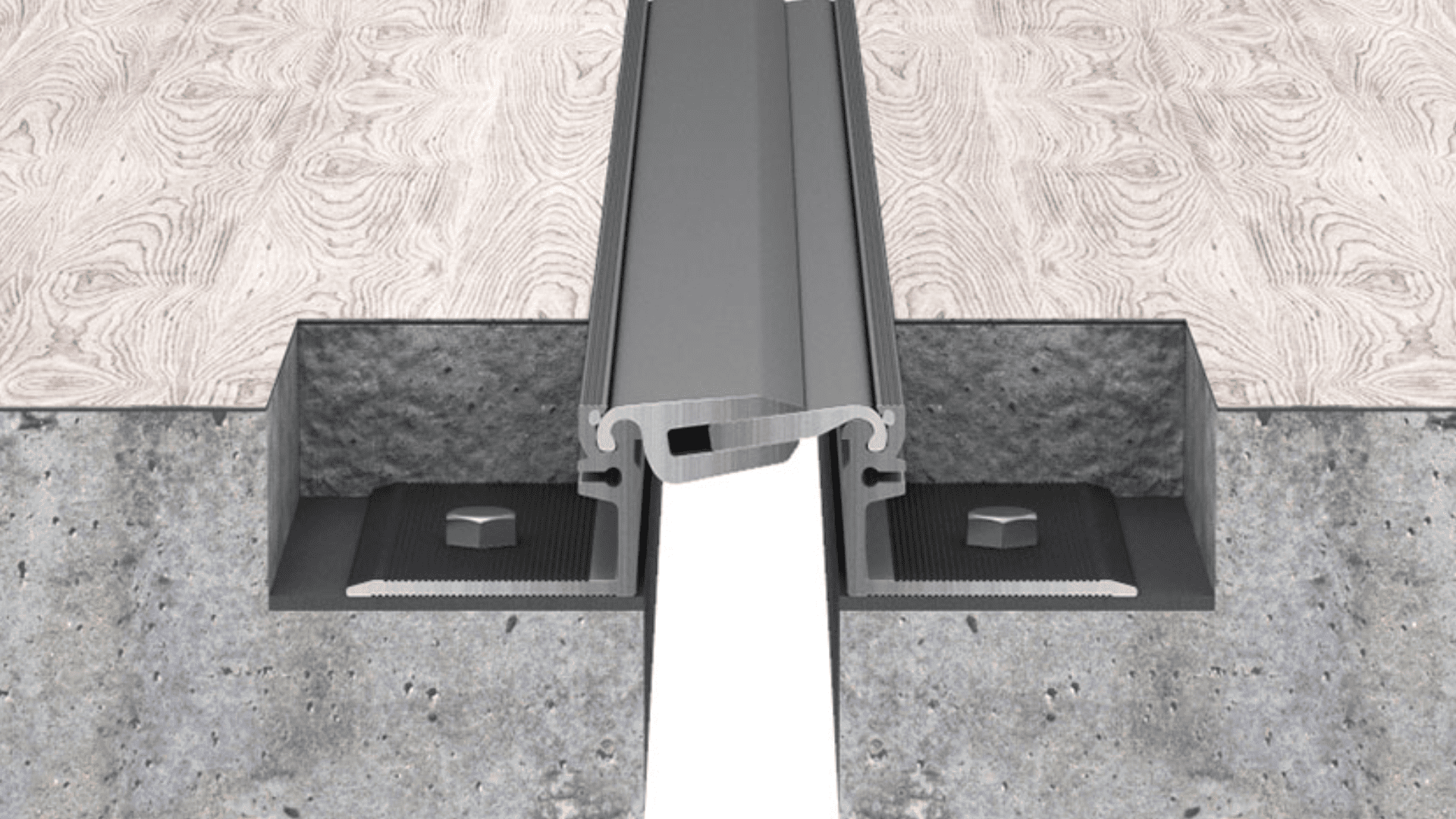

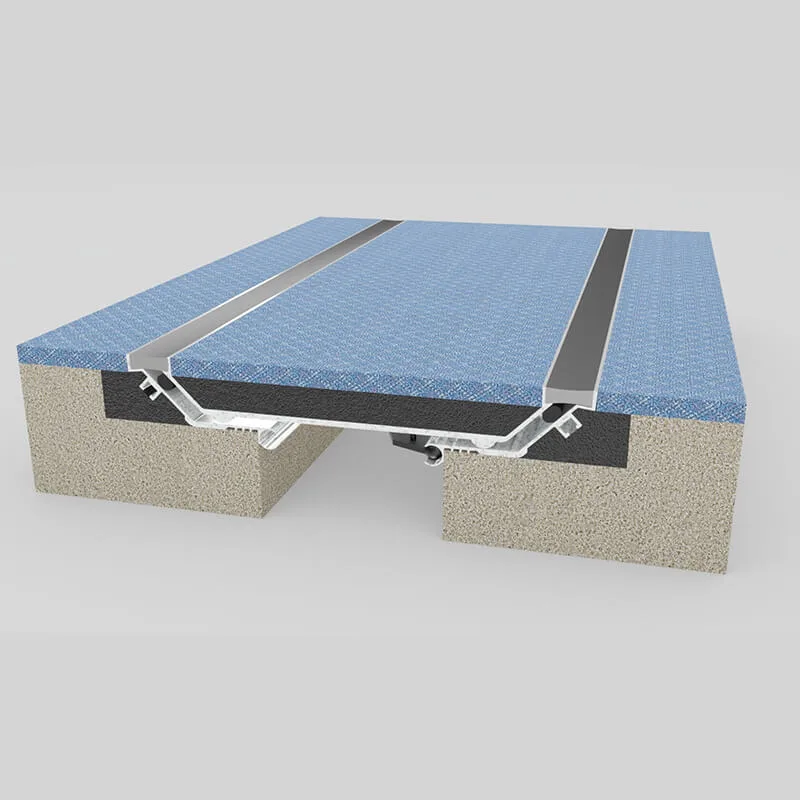

• Floor expansion joints — recessed aluminium profiles with rubber or thermoplastic inserts, gliding-plate systems for wide joints, and heavy-duty plate systems for vehicular traffic

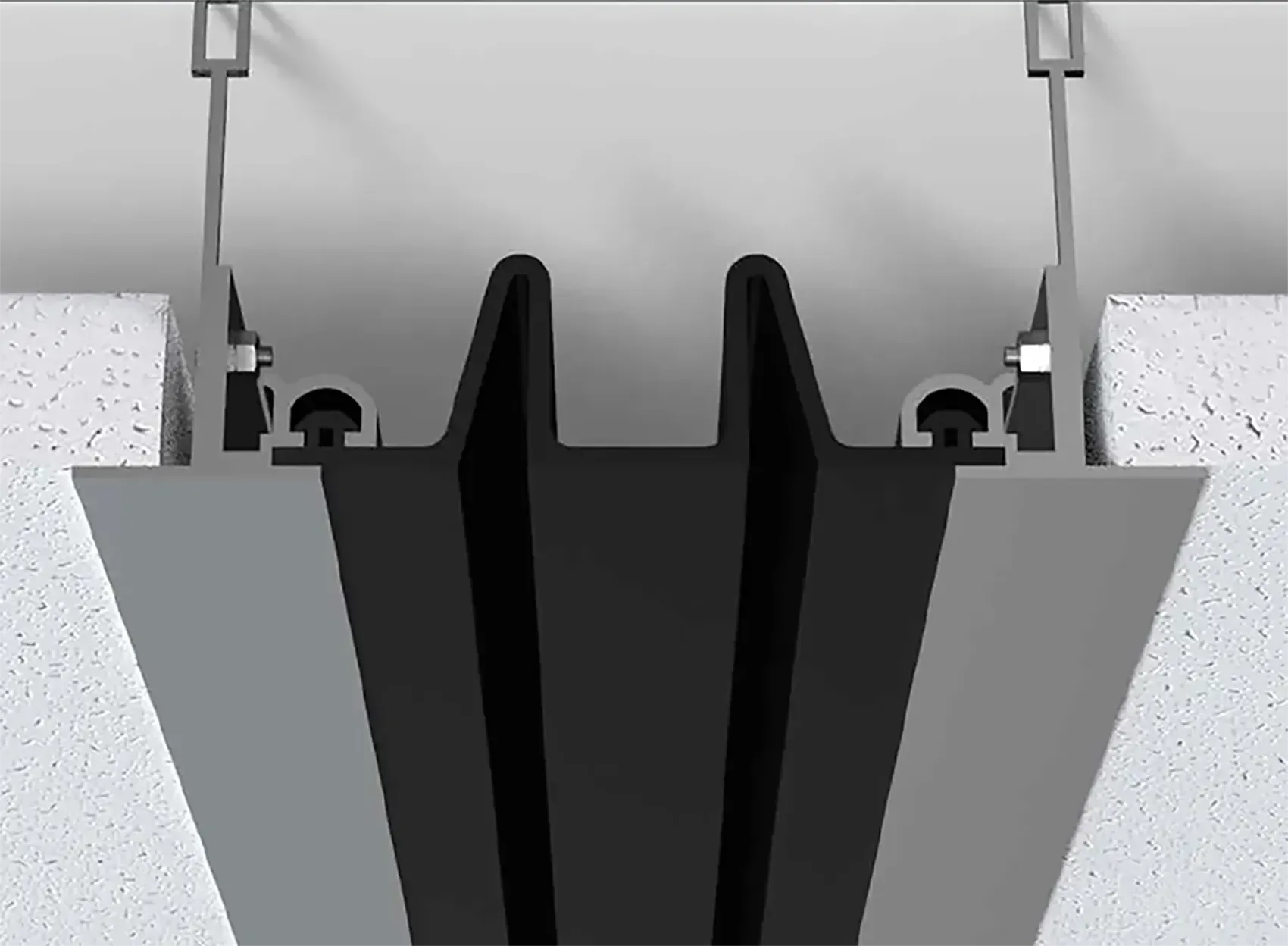

• Wall and ceiling joints — flush architectural covers, surface-mounted profiles and flexible membrane systems that disappear into the finish
• Seismic expansion joints — large-movement assemblies (100 mm to 500+ mm) engineered to accommodate multidirectional displacement in towers and long-span structures

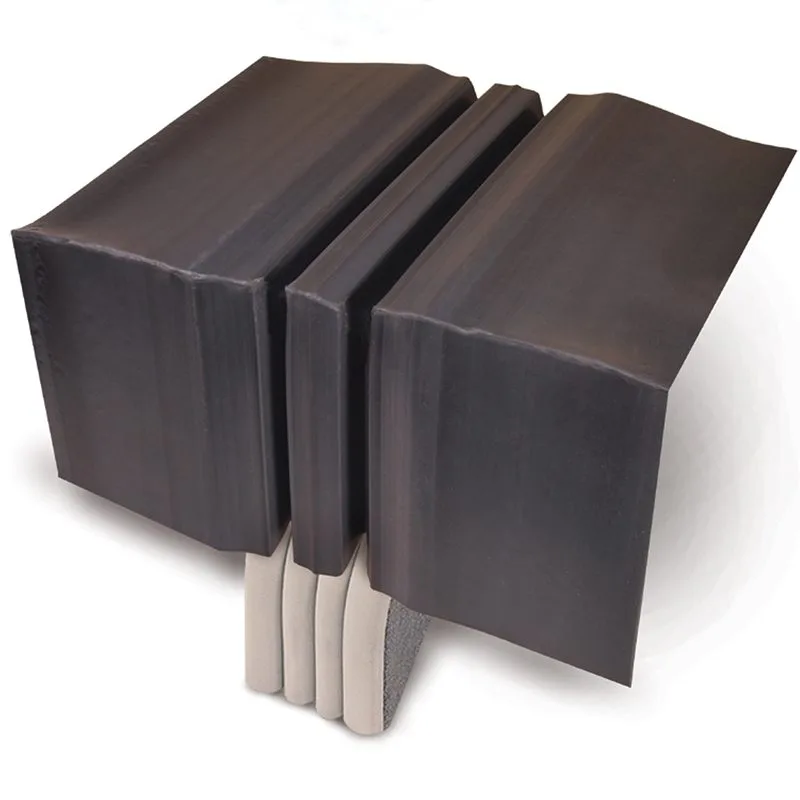

• Roof and parapet joints — waterproof bellows and metal-flashing systems integrated with the roofing membrane

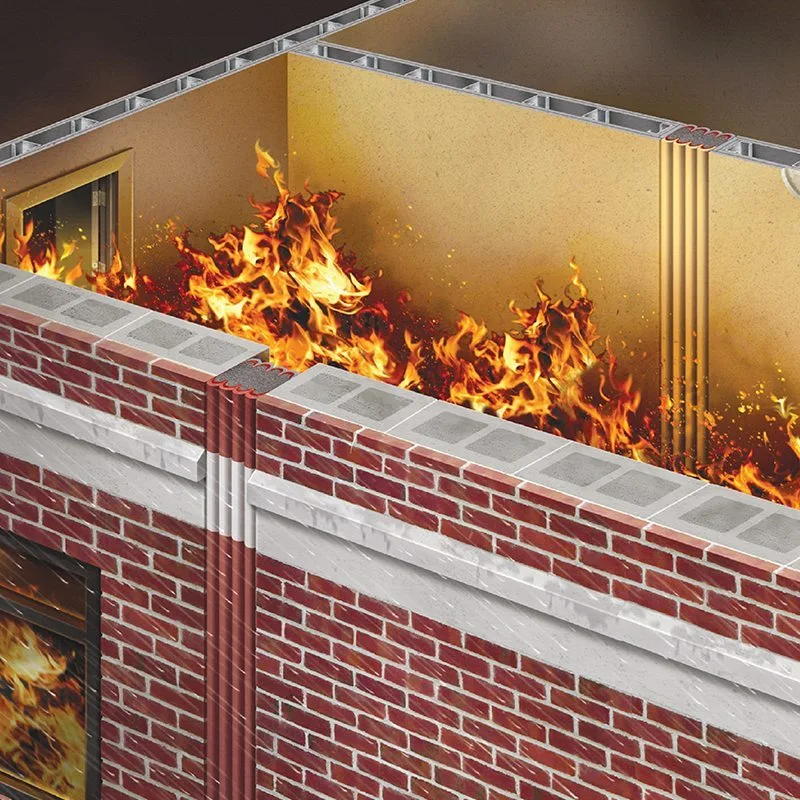

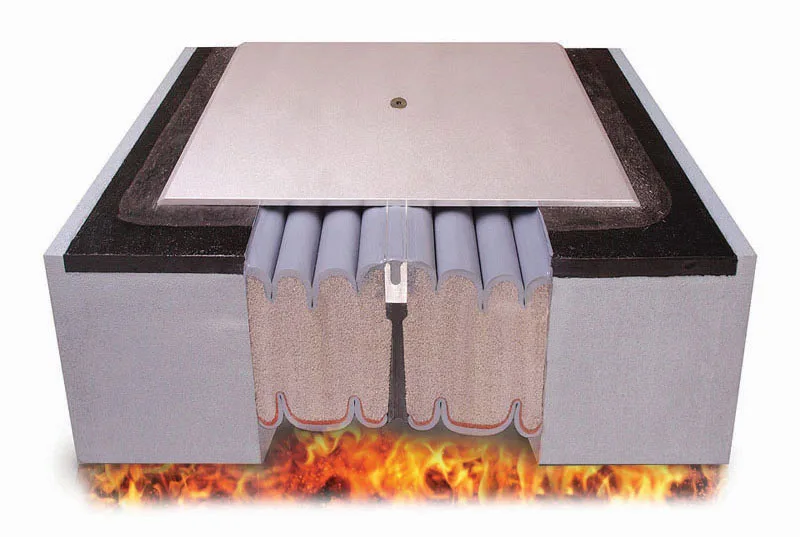

• Fire-rated joint systems — fire barriers and intumescent blankets installed within the joint to maintain the 1-, 2- or 3-hour rating of the assembly (tested to UL 2079 / ASTM E1966)
• Exterior facade joints — weather-sealed vertical joints for cladding, precast and curtain-wall interfaces
• Pre-compressed foam sealant joints — hybrid acrylic-impregnated foam systems (e.g., Emseal or Willseal -type) providing watertight, trafficable seals for wide or irregular joints

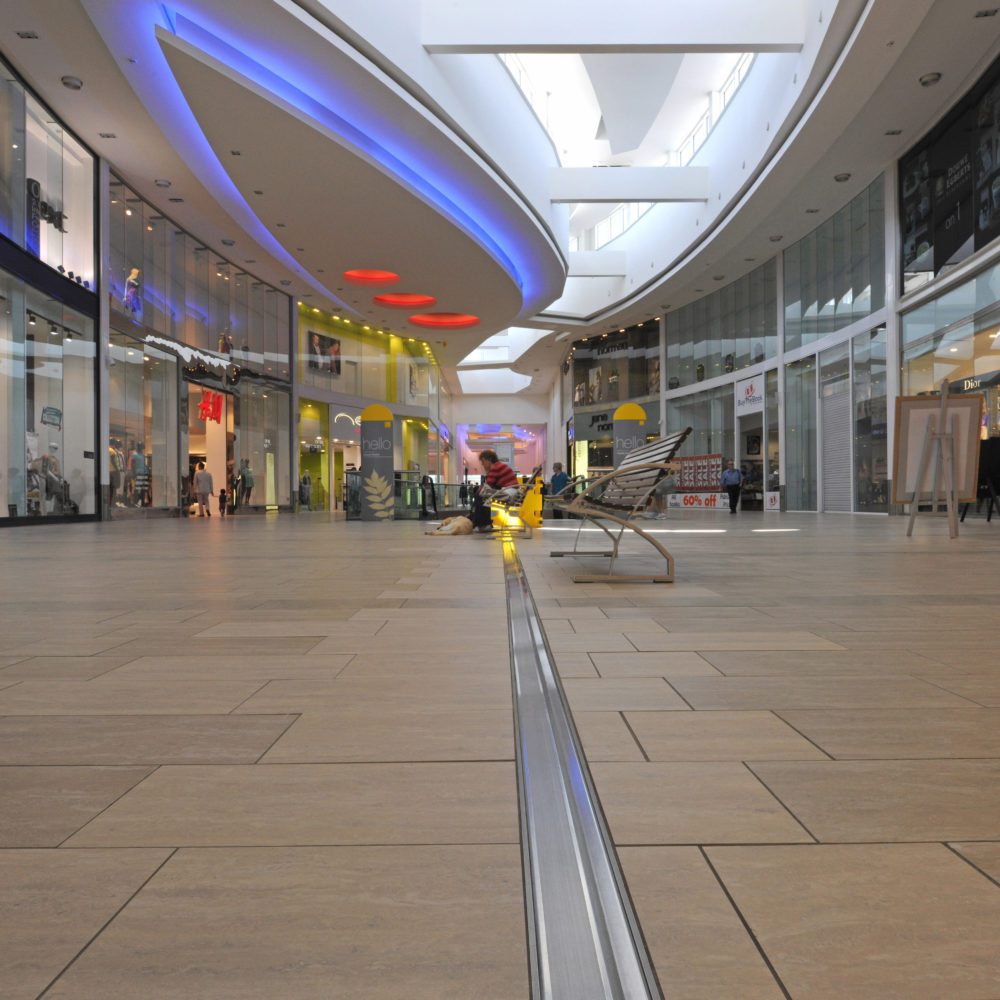

• Tile and screed movement joints — intermediate aluminium, brass or PVC profiles that protect tiled floors from cracking — one of the most searched joint categories in Saudi Arabia

Standards & Compliance in Saudi Arabia

Expansion joints are a code item, not an accessory. In the Kingdom they must satisfy the Saudi Building Code (SBC) structural and fire provisions, and where a joint crosses a fire-rated wall or floor, the installed system must carry a listed fire-barrier rating (UL 2079 / ASTM E1966 movement-and-fire cycling standards). Atlantis provides movement calculations, product test certificates, method statements and as-built handover files — the documentation package consultants and the Civil Defense inspection process require.

Manufacturers & Brands We Work With

We are brand-independent and specify from the leading global expansion joint manufacturers according to your project's movement class, finish and budget. Systems we regularly supply and install include those from Willseal, ARFEN, Balco, CS Group (Construction Specialties), Sika / Emseal, MM Systems, Inpro, Migua and Hilti (for fire-rated joint sealing and firestop integration), alongside certified accessories — sealants, membranes and fire blankets — from 3M, Promat and Sika. Because Atlantis also holds specialist firestop capability in-house, the fire-rated portion of your joints is installed and documented by the same accountable team — no split scope between trades.
